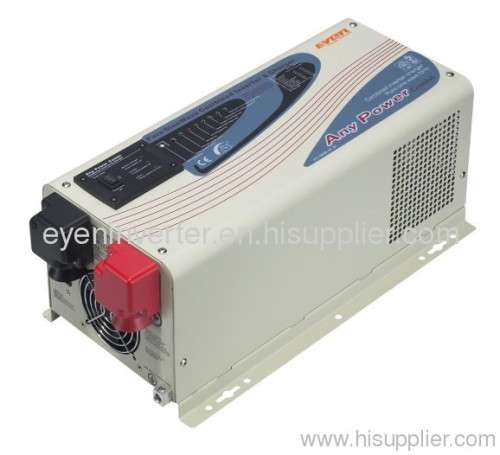

inverter with voltage Regulator from China manufacturer

Price:	100.0~150.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: APS

Production Capacity: 6000pcs/month

Delivery Date: 20days

Output Type: Dual

Brand Name: 1000W-6000W

Output Voltage: 230VAC/120VAC

Means of Transport: Ocean,Land,Air

Packing: in carton or wooden box

Type: DC/AC Inverters

Output Power: Others

Input Voltage: 230VAC/120VAC

COLOR: WHITE/BLACK

--Pure sine wave output
--with Voltage Regulator
-with charger,charing adjusted 0%-100% freely

Electrical Specvifications
	Model	APS1000W	APS1500W	APS2000W	APS3000W	APS4000W	APS5000W	APS6000W
Inverter Output	Continuous Output Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
	Surge Rating(20s)	3000W	4500W	6000W	9000W	12000W	15000W	18000W
	Output Waveform	Pure Sine wave/Same as input(Bypass mode)
	Nominal Efficiency	>88%(Peak)
	Line Mode Efficiency	>95%
	Power Factor	0.9-1.0
	Nominal Output Voltage rms	100-110-120Vac / 220-230-240Vac
	Output Voltage Regulation	±10% RMS
	Output Frequency	50Hz ± 0.3Hz/60Hz ± 0.3Hz
	Short Circuit Protection	Yes( 10s after fault )
	Typical transfer Time	10ms(Max)
	THD	< 10%
DC Input	Nominal Input Voltage	12.0Vdc
		( 2 for 24Vdc, 4 for 48Vdc)
	Minimum Start Voltage	10.0Vdc
	Low Battery Alarm	10.5Vdc / 11.0Vdc
	Low Battery Trip	10.0Vdc / 10.5Vdc
	High Voltage Alarm	16.0Vdc
	Low Battery voltage recover	15.5Vdc
	Idle Consumption-Search Mode	< 25 W when Power Saver On
Charger	Output Voltage	Depends on battery type
	Charger Breaker Rating	10A	15A	20A	20A	20A	30A	30A
	Max Charge Rate	35A / 70A
	Battery Initial Voltage for Start Up	10-15.7V for 12V( 2 for 24V, 4 for 48V)
	Over Charge Protection Shutdown	15.7V for 12V (2 for 24V, 4 for 48V)
	Charger curve(4 stage constant current) 4 step digital controlled progressive charge	Battery types ( 2 for 24Vdc, 4 for 48Vdc)
	Remote Control	Yes. Optional
Bypass & Protection	Input Voltage Waveform	Sine wave (Grid or Generator)
	Nominal Voltage	110Vac		120Vac		220Vac	230Vac	240Vac
	Max Input AC Voltage	150VAC				270VAC
	Nominal Input Frequency	50Hz or 60Hz (Auto detect)
	Low Freq Trip	47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
	High Freq Trip	55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
	Overload protection(SMPS load)	Circuit breaker
	Output Short circuit protection	Circuit breaker
	Bypass breaker rating	10A	15A	20A	30A	30A	40A	40A
	Transfer switch rating	30amp for UL & TUV				40amp for UL
	Bypass without battery connected	Yes
	Max bypass current	30amp				40amp
	Bypass over load current	35amp: Alarm				45amp: Alarm
AVR Function	Input AC Voltage Range	90-140V±4%				154-253V±4%
	Stabilized Output Voltage rms	120VAC±10% rms				230VAC±10% rms
	Nominal Voltage	110Vac		120Vac		220Vac	230Vac	240Vac
	(A) Line Low loss N/W (On Battery)	84/72		92/78		168/143	176/150	183/156
	(B) Line Low comeback N/W (On Boost)	89/77		97/83		178/153	186/160	193/166
	(C) Line 2nd boost threshold (On Boost)	**		**		**	**	**
	(D) Line 2nd boost comeback (On Boost)	**		**		**	**	**
	(E) Line 1st boost threshold (On Boost)	99		108		198	207	216
	(F) Line 1st boost comeback (On Normal)	103		112		205	215	225
	(G) Line buck comeback (On Normal)	118		128		235	246	256
	(H) Line buck threshold (On Buck)	121		132		242	253	264
	(I) Line high comeback (On Buck)	127		139		253	266	278
	(J) Line high loss (On Battery)	132		144		263	276	288
Mechanical Specifications	Mounting	Wall mount
	Inverter Dimensions(LWH)	382218179mm		442218179mm		598218179mm
	Inverter Weight	18KG		20KG	24KG	35KG	45KG	45KG
	Shipping Dimensions(LWH)	520315300mm		580315300mm		740315300mm
	Shipping Weight	20KG		22KG	26KG	37KG	47KG	47KG
	Display	Status LEDs / Status LEDs+LCD
	Standard Warranty	1 Year
